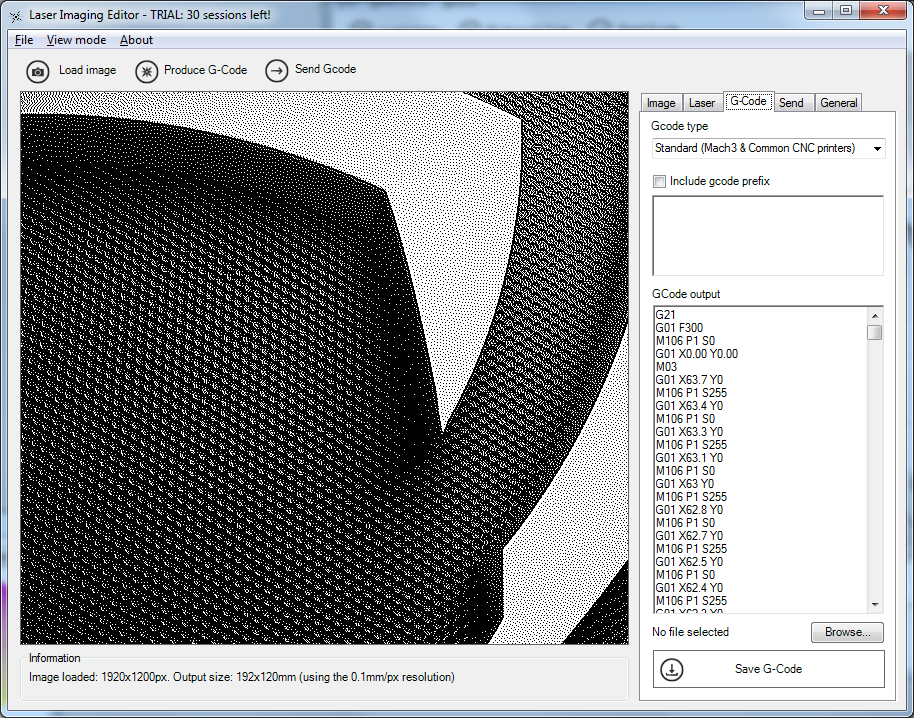

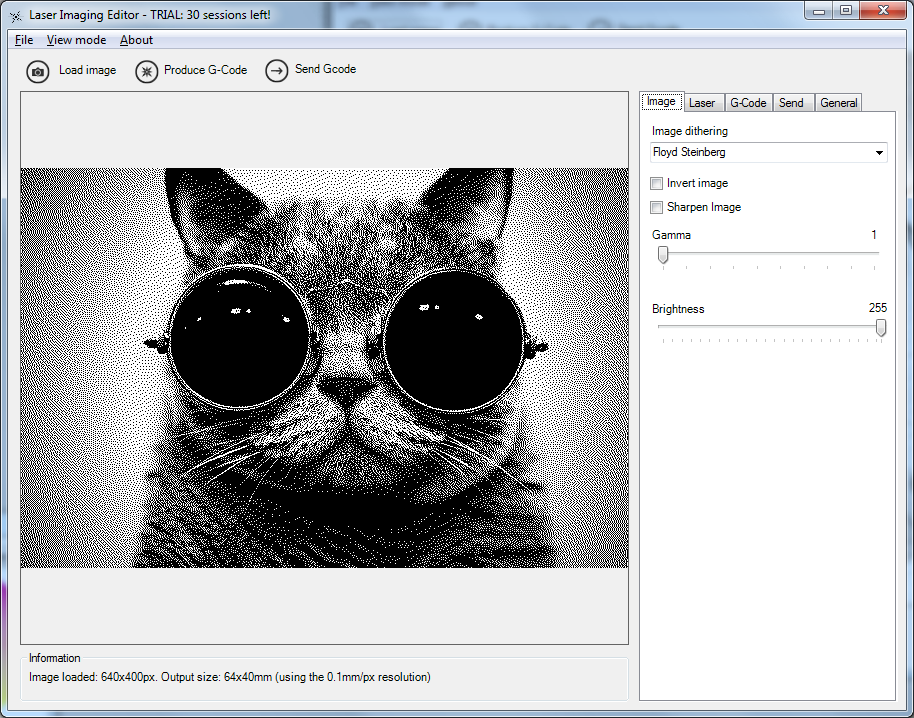

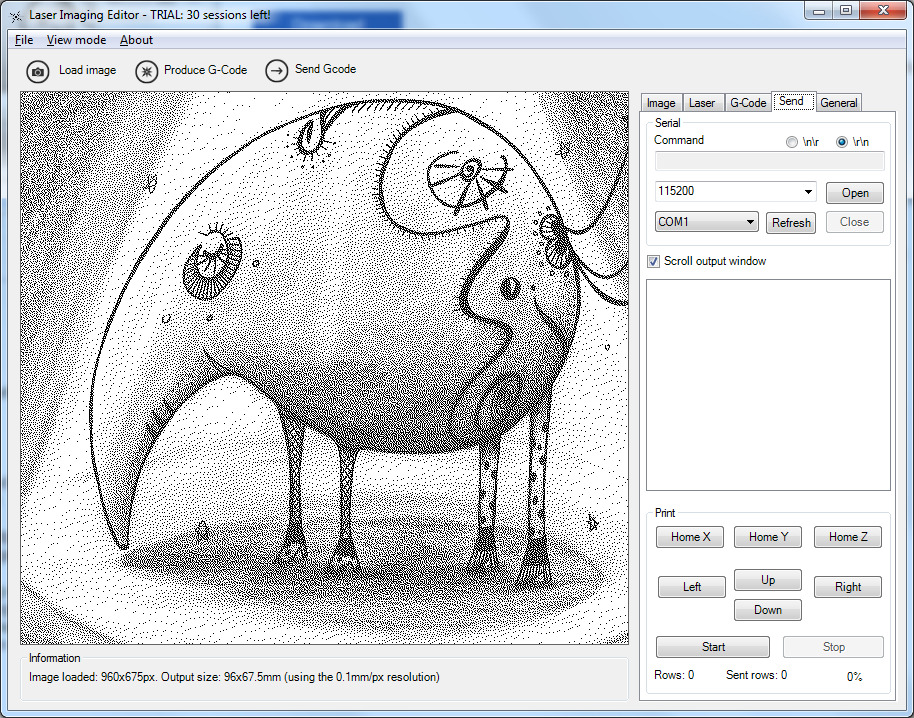

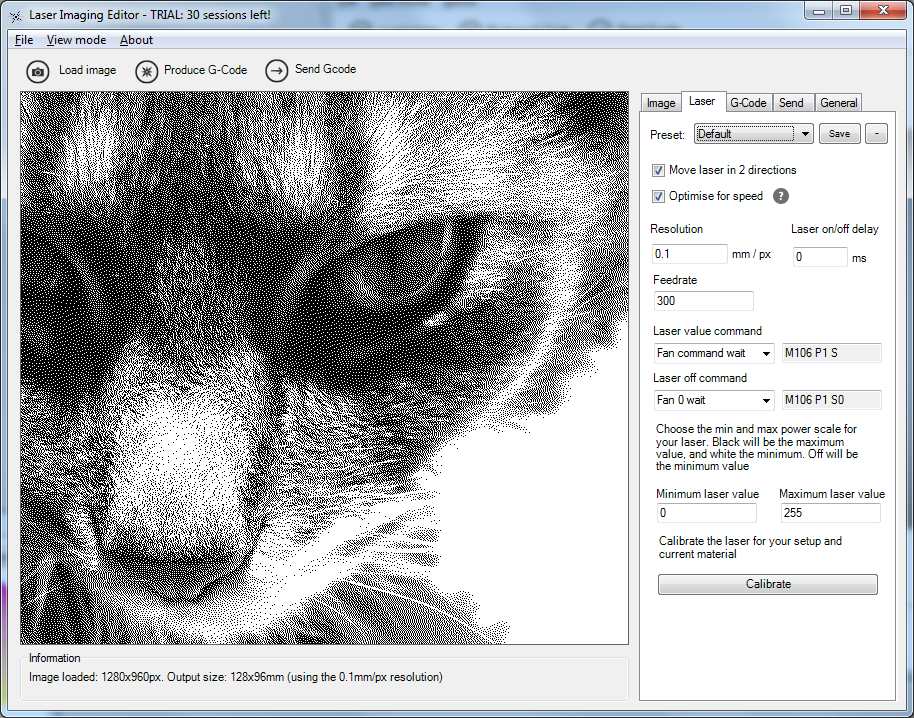

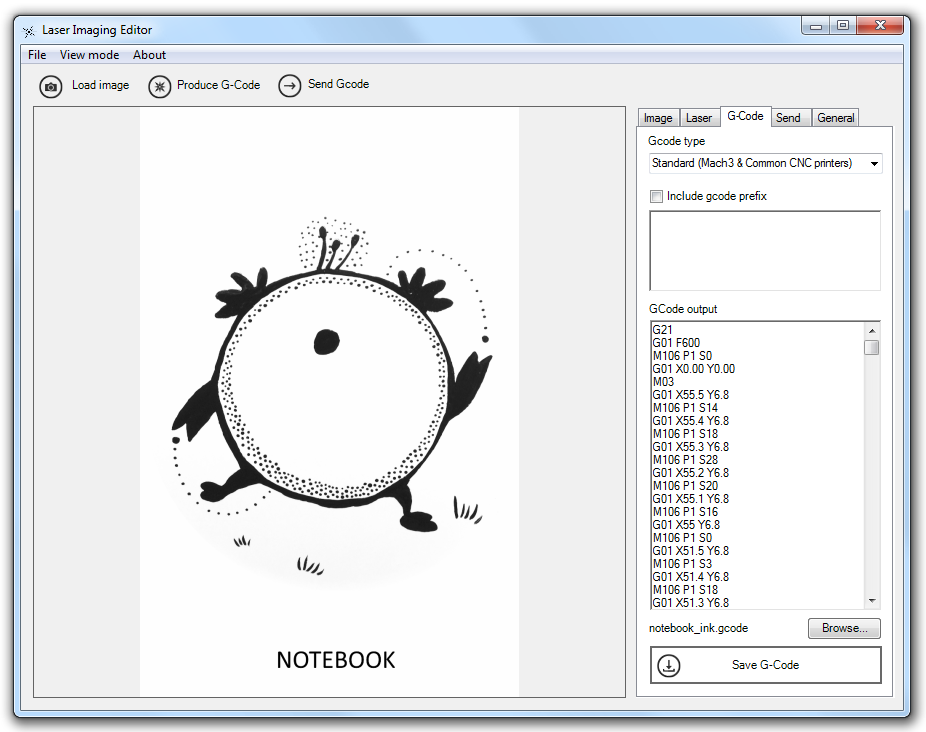

Laser Imaging Editor


A great tool to rasterize images with your laser machine. This application is focussed on small laser machines with low-power lasers like the m140 2 Watt diode, or lower.
It has a simple user interface, and great results. It's fully functional for 30 uses to try out, after that it will limit the saving and generation of the G-Code. It has been tested on the Shapeoko2 with laserink module, and arduino based CNC mills with laser add-on's.



Latest version: 2.0.2.0

Use installer

Download offline zip

The full version is only $5 dollar (or €4.50). I have given away 10 free serials (sorry, all gone) for the first users. If you still want to recieve a key, please use the button below and I will send you one after payment:



Visit the forum (offline)

Use Paypal to buy the full version. I'll send you the key via the e-mail used in the transaction. You may use the software on 1 computer with the provided key.
Please add a 'note' to specify your (company) name for the key if needed.
This software is still a work in progress! There could be bugs, or missing features. Please let me know what you think!
Please E-mail me with feedback and questions or use the forum!


Changelog (2.0.2.0): (app version nr is still 2.0.1.9, i'll fix this)
  • GRBL compatibility updated


    • Older changes:
    2.0.1.9
  • Added gcode postfix field
  • Added zoom option to increase the image size without changing resolution
    • 2.0.1.8
  • Fixed home mistake
  • Added max val in calibration
    • 2.0.1.7
  • Fixed input bug
  • Improved jogging interface and settings
    • 2.0.1.6
  • Added jogging control with arrow keys
  • Added more control buttons for speeds
  • Added general setting for jogging speed with arrow keys
    • 2.0.1.5
  • Fixed a bug in the presets
    • 2.0.1.4
  • Presets added
  • Calibration wizard added
  • Jogging controls added
    • 2.0.1.3
  • Added info panel for output size (mm and inches)
  • Optimised memory usage and G-code file size with normal generation mode
  • Sanitized input
  • Fixed a bug producing g-code without an image
  • Interface updated, changed saving mechanic. Added 'laser off' selection.
  • Added full gray scale image optimalisation. You can now choose between optimized mode for pure black and white images, or gray scale.
  • fixed 'mm / px' indication

    • Older versions:
    01-17 download
    01-16-2015 download
    01-15-2015 download
    01-14-2015 download
